When buyers compare tour guide systems, they count receivers, check the range and ask about battery life. The charging box usually comes last, if at all.
That is often a mistake. A tour guide system charging box decides how quickly equipment is ready for the next day, how easily staff can see what is missing, and how much work it takes to keep a large fleet running. This article explains what to look at.
Battery Life Is Only Half the Story
A receiver that runs 7 to 10 hours can usually get through a normal day without any top-up. So the pressure on charging doesn't come in the middle of the day. It comes at night, or between two busy days in a row.
Every receiver and every transmitter needs to be full again by the time the venue opens. If the charging setup can't manage that, the first tours of the morning start with half-empty devices.
A Quick Calculation
Say a venue owns 150 receivers, and a receiver takes 2.5 hours to charge fully. The R8's charging box holds up to 45 devices at a time.
With one box, the venue would need four rounds to charge all 150 units: 45, 45, 45 and 15. At 2.5 hours a round, that is about 10 hours, and someone has to swap the devices over between rounds.
With four boxes, everything charges at once in about 2.5 hours. The number is an illustration, not a recommendation, but it shows how quickly a small charging setup turns into a bottleneck as the fleet grows.
Counting Charging Slots, Not Just Receivers
Most kits list the receiver count first. The charging line is easy to skip.
Some examples from the YingMi range. The B7-1 30-person kit comes with 1 transmitter, 30 receivers and 2 charging docks. The 500-person kit has 5 transmitters and 10 charging units. The A8 500-person kit also includes 10 charging units, and the 008E 20-person kit includes 2 charging docks.
How many devices each dock or unit holds varies by model, and the kit specifications don't always say. Ask the supplier directly, and work out whether the whole kit can be charged inside your overnight window.
Don't Forget the Transmitters
Transmitters need charging too, and they sometimes take longer than receivers. On the B7-1, for example, the transmitter takes 3 to 5 hours and the receiver about 3 hours.
If you run several guides at once, count the transmitters in the same calculation. Otherwise a guide can arrive in the morning to a transmitter that was left on the shelf.
What a Good Charging Box Does Beyond Charging
A box with fixed slots makes handling simpler in a few small ways.
Staff can see at a glance whether any device is missing, because an empty slot stands out. Receivers go out and come back in the same place, which reduces mix-ups. And everything charges together, so no one has to plug in units one by one at closing time.
For shared equipment, some boxes also offer disinfection. That is worth asking about if visitors wear the devices for a long time and many people use each one in a day.

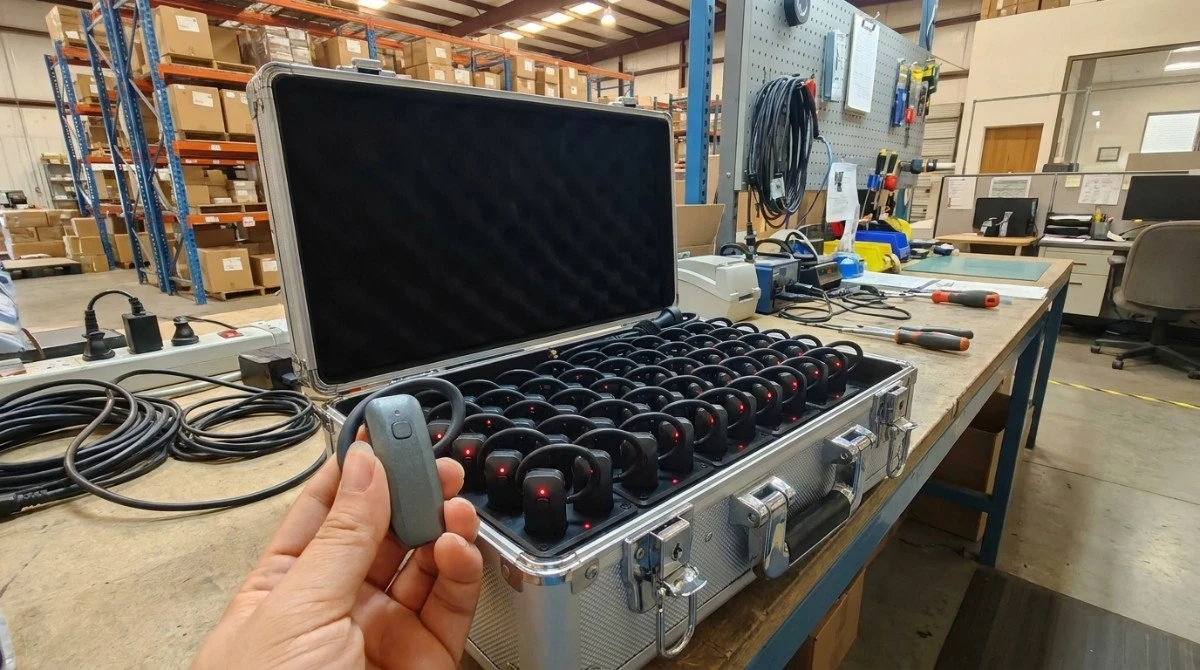

A 45-Slot Box for a Busy Fleet
The YingMi R8 comes with a contact-type charging box that can charge up to 45 devices at the same time. The box has an optional ultraviolet disinfection function. Both transmitter and receiver take 2.5 hours to charge and run 7 to 10 hours, so a full overnight charge is easy to plan around.
For a venue with a few dozen devices, one box can be enough. For larger fleets, several boxes let everything charge in a single round. You can read the full specifications on the R8 anti-interference tour guide system page.
Where to Put the Charging Station
The best place is close to where you hand out and collect equipment. If staff have to carry devices across the building, some will be left out overnight.
Check that there are enough power outlets, and that the box has room to breathe. A cramped cupboard with no airflow is a poor spot for a dozen devices that all warm up while charging.
Questions to Ask Before You Order
How many devices does one charging box or dock hold?
How long does a full charge take for transmitters and for receivers?
Can the whole kit charge within one night?
Is disinfection available, and is it standard or optional?
Can I add extra boxes later if the fleet grows?
FAQs
Q: How many tour guide receivers can charge at once?
A: It depends on the model. The R8 charging box holds up to 45 devices at a time. For other models, ask the supplier how many each dock or unit takes.
Q: How long does it take to charge a tour guide receiver?
A: It varies by model. Several YingMi models, including the R8, L7 and E8, take about 2.5 hours. The B7-1 receiver takes about 3 hours, and its transmitter takes 3 to 5 hours.
Q: Do I need a charging box, or can I use cables?
A: Cables work for a small kit. As the fleet grows, a box is easier to manage, because you can see which devices are missing and charge them all together.
Q: Does a charging box have to include disinfection?
A: No. It's an extra, and not every box has it. Consider it if devices are shared among many visitors, and check whether it is standard or optional on the model you want.
