Interactive Digital Signage System
Multi-language Support
Real-time Navigation
Mechanical Arm Guidance
Remote Cloud Management
Hefei Humantek Co., Ltd. is one of the leading manufacturers and suppliers of interactive digital signage system in China. With a professional production team, we are able to meet the needs of the majority of our customers. Welcome to buy bulk high quality interactive digital signage system from our factory.
The Yingmi Interactive Digital Signage System is a comprehensive smart navigation product that integrates IoT, artificial intelligence, big data analytics, 720° panoramic display, and multi-modal interactive technology. It serves venues including cultural tourism scenic areas, museums, exhibition halls, shopping centers, hospitals, and transportation hubs. The system breaks through the functional limitations of traditional static signage - evolving from single-point direction indication to a full-spectrum, personalized, and real-time spatial information service.
The core product consists of three tightly integrated components: a Smart Signboard Terminal (with mechanical rotating arm and full HD touch screen), a WeChat Mini Program for visitor mobile experience, and a Cloud CMS Back-end Management Platform for operators. Together they realize seamless online-to-offline navigation, rich point-of-interest content delivery, and data-driven operational optimization - all deployable with minimal infrastructure investment.
Hardware Configuration
| Component | Specification |
|---|---|
| Server RAM | 16 GB or above |
| Server CPU | Intel Core i5 (4-core) or above |
| Server Storage | 200 GB HDD / SSD or above |
| Server OS | Windows Server 2016 or above |
| Network Bandwidth | 10 Mbps or above (dedicated) |
| Display Terminal SoC | RK3288 or above |
| Display Terminal RAM | 4 GB or above |
| Display Terminal Storage | 16 GB or above |
| Recommended Android Config | RK3399, 4 GB RAM, 32 GB Storage |
| Mechanical Arm Channels | 3 independently motorized arms, LED strip + text display per arm |
| Touch Screen | High-brightness outdoor-grade HD touch panel (configurable size) |
| Connectivity | Wi-Fi / 4G LTE / Ethernet (configurable) |
Product Features
Every feature is designed with one goal: remove friction between a visitor and their destination - while giving operators full control over the experience.

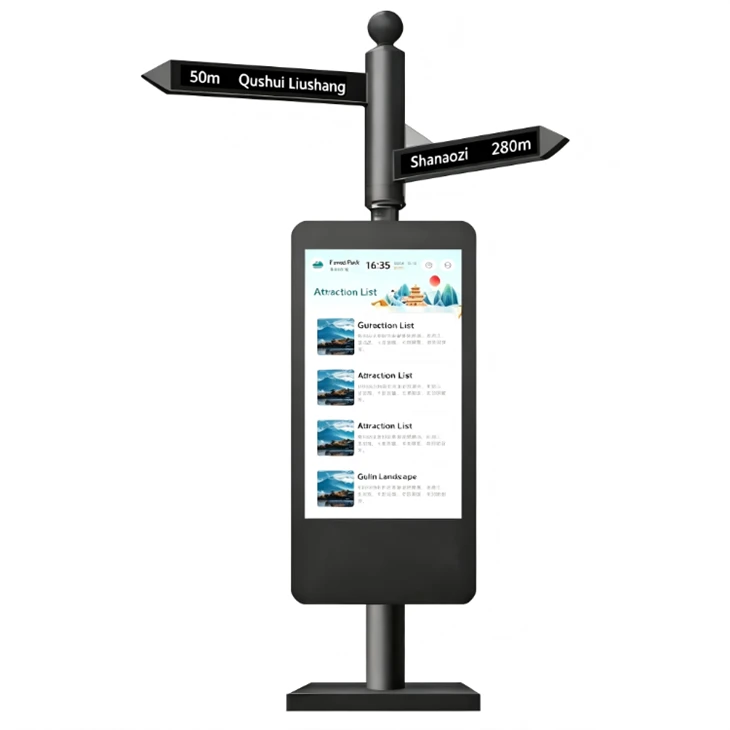

Motorized Mechanical Arm with LED Direction Display
Select a destination, and the arm rotates precisely to point the way, while its LED panel shows the name, arrow, and distance. An audio chime confirms activation. This kinetic physical signal is far more intuitive and unmissable than any flat screen.
AI Voice Assistant with Natural Language Processing
Natural voice interaction (e.g., restroom queries) with on-device AI: accurate routes, spoken answers, smart recommendations. Custom wake words supported. OTA-updated NLP enables simultaneous voice control and arm activation for full hands-free operation.
Real-time GPS & Route Planning Navigation
Built-in GPS shows real-time location on an interactive map. One-tap navigation computes optimal walking routes and syncs instantly to the WeChat Mini Program, enabling continuous off-kiosk navigation on visitors' phones.

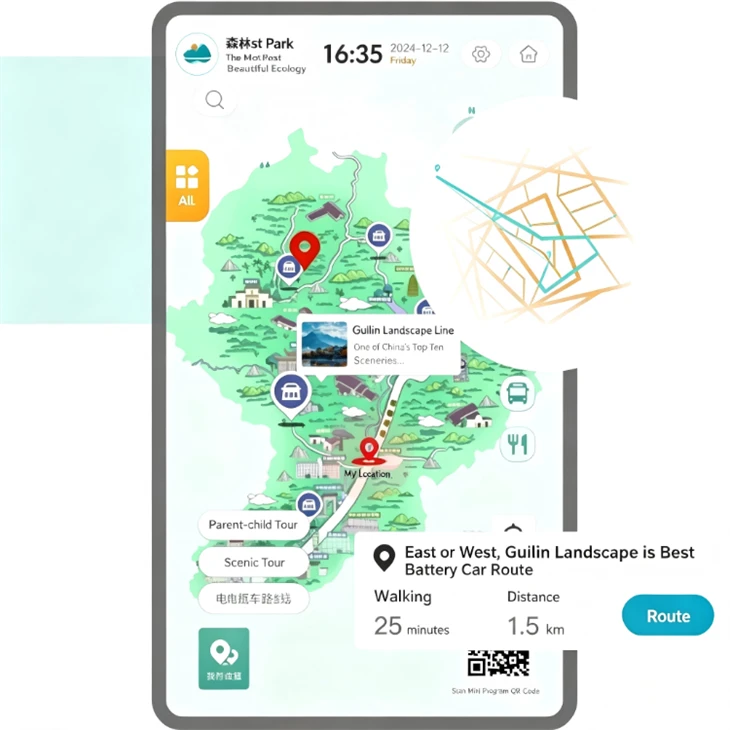

Fully Interactive HD Touch Map
Interactive map with zoom/pan & categorized POIs. Supports standard digital and custom brand-aligned hand-drawn maps. Tap POIs for photos, descriptions, hours and one-tap navigation.

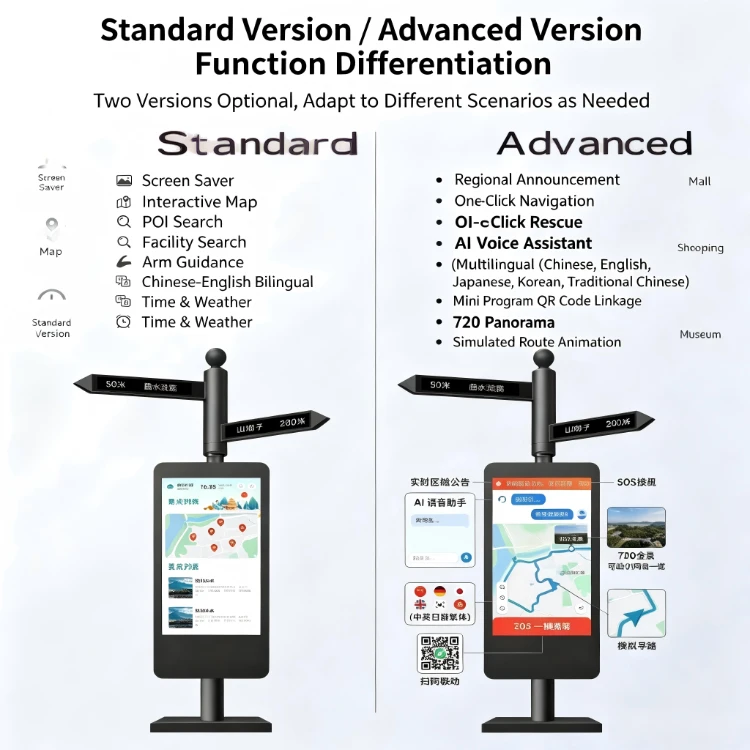

Edition Comparison
Standard Edition
Core wayfinding for compact venues
✓Interactive zoomable map with POI display
✓POI search (fuzzy text search)
✓Facility locator (restroom, parking, dining)
✓Mechanical arm direction + LED display
✓Arm rotation audio cues (3 arms)
✓Chinese / English language switch
✓Real-time time & weather display
✓Screen saver / idle mode
Advanced Edition
Full smart navigation suite · Most popular
✓Everything in Standard Edition
★AI Voice Assistant (NLP, voice query)
★One-key navigation with arm guidance
★Real-time user positioning on map
★Simulated wayfinding path animation
★5-language support (JP, KR, Traditional CN)
★QR code - WeChat Mini Program sync
★One-key SOS emergency alert
★Area announcements & event publishing
★POI thumbnail, video, and detail pages
How It Works
Visitor Journey in 4 Steps
Approach
Visitor arrives at kiosk; screen wakes from idle
Search or Speak
Touch or voice query for destination
Arm Guides
Mechanical arm rotates; LED shows direction & distance
Scan & Go
QR sync to phone for continuous mobile navigation
Application Scenarios
Built for Any Complex Public Space
The Yingmi Interactive Digital Signage System adapts to the navigation challenges of diverse venue types, providing context-appropriate guidance wherever visitors need it most.
Cultural Tourism Scenic Areas
Personalized routes, cultural audio commentary, real-time events & 720° spot previews. Helps operators analyze visitor flow and optimize peak resources. Multilingual tickets, weather alerts & safety announcements.
Museums & Exhibition Halls
Exhibit-by-exhibit commentary with auto-proximity triggers & selectable voices. Interactive map shows hall layouts, temporary exhibits & facilities. QR sync enables seamless on-phone exhibit detail viewing.
Shopping Centers & Hospitals
Turn-by-turn directions to stores, dining, amenities & promotions. Hospital mode: department navigation, real-time wait times & queue reduction. Emergency SOS for fast staff response in healthcare settings.
Transportation Hubs & Campuses
Wayfinding for airports, stations, ferries & campuses (solves crowd/layout navigation anxiety). Cloud CMS pushes real-time weather, traffic & timetable updates to terminals. Multi-language support for universal guidance.
FAQ
Q: What is the difference between the Standard Edition and the Advanced Edition?
A: The Standard Edition covers core wayfinding functions: an interactive map, POI search, facility locator, mechanical arm guidance, and basic bilingual (Chinese/English) support. The Advanced Edition adds AI voice query, one-key GPS navigation with arm synchronization, real-time visitor positioning, 5-language support, WeChat Mini Program QR sync, one-key SOS, and area announcement publishing. Most scenic area and museum clients choose the Advanced Edition or Full Suite.
Q: How does the mechanical arm direction system work?
A: Each signboard terminal is fitted with up to three independently motorized arms. When a visitor selects or speaks a destination, the system calculates the optimal heading from that terminal's known location and rotates the corresponding arm to face that direction. Simultaneously, the LED strip on the arm displays an arrow, destination label, and approximate distance. A chime sound indicates which arm number has activated. The arm angles are pre-configured and calibrated during installation using the backend management platform.
Q: Does the system require an internet connection to function?
A: Core navigation, map display, and POI search operate from locally cached data, making the terminal functional even during brief connectivity interruptions. An active network connection (Wi-Fi or 4G LTE) is required for real-time announcements, weather updates, remote CMS management, and WeChat Mini Program QR sync. The companion Mini Program supports offline map download so visitors can continue navigating on mobile without continuous data.
Q: Can the map and interface be customized to match our venue's branding?
A: Yes. Yingmi provides full UI customization including brand color schemes, logo placement, and interface typography. Additionally, a custom hand-drawn illustrated map (a popular choice for scenic areas and theme parks) can be created to your venue's exact layout and visual style - subject to the separate map illustration process, which includes survey data collection, draft review, and up to three revision rounds before final delivery.
Q: What languages are supported and can additional languages be added?
A: The Advanced Edition includes Simplified Chinese, Traditional Chinese, English, Japanese, and Korean as standard. Additional languages including French, German, Spanish, Arabic, and others can be added as a customization. All translated content - map labels, POI names, navigation prompts, and AI voice responses - must be provided or reviewed by the client before deployment to ensure accuracy.
